The Frozen Trough: 5 Critical Rules for Designing a Freeze-Proof Winter Watering Station for Beef Cattle

Overcoming the Winter Freeze: Engineering an Uninterrupted Water System for Cattle

When sub-zero temperatures hit the pasture, water management instantly becomes the most demanding chore on a beef cattle operation. A mature beef cow requires up to fifteen gallons of water per day to maintain rumen function, digest dry winter forage, and regulate internal body temperature. If your water troughs freeze solid, cattle stop eating, milk production drops, and the herd faces immediate risks of impaction colic and severe dehydration. Relying on an axe to break ice every morning is a dangerous, inefficient strategy. To build a truly resilient winter watering station, you must master thermal ground insulation, subsurface supply line dynamics, and energy-free valve mechanics.

Rule 1: Anchor the Station on a Deeply Insulated Concrete Pad

A successful winter watering tank cannot rest directly on bare frozen earth. As the ground freezes, frost heave will shift the tank structure, cracking PVC supply lines and breaking water seal joints underneath. Begin by pouring a reinforced concrete pad that extends at least four feet beyond the perimeter of the water trough. Before pouring the concrete, lay down a two-inch layer of high-density extruded polystyrene insulation board beneath the pad. This structural thermal barrier cuts off the freezing ground temperatures from traveling upward, retaining the natural five-degree ground heat within the plumbing cavern below.

Rule 2: Implement a Heavy Duty Thermal Earth Sleeve

The weakest link in any winter watering station is the vertical supply pipe rising from below the frost line up into the bottom of the trough. If this pipe freezes, the entire station fails, regardless of how warm the water inside the tank remains. Encase the vertical water supply line inside a heavy-duty, double-walled corrugated polyethylene drainage tile with a minimum diameter of twelve inches. Extend this earth sleeve down at least four to five feet below your regional frost line. The large volume of air inside this insulated column continuously draws geothermal heat up from deep underground, forming a protective warm sleeve around your pressurized water line.

Rule 3: Deploy an Underground Float System with Geothermal Caps

Standard open-air mechanical float valves freeze instantly when exposed to icy winds and splashing water at the top of a tank. For uncompromising winter performance, configure your watering station with a bottom-entry, heavy-duty subsurface float valve or an underground earth-insulated valve box. If your trough uses a top-feeding design, enclose the float mechanism entirely within an insulated shroud or a heavy structural plastic dome. This shield traps the ambient warmth of the incoming subsurface water, keeping the mechanical pivots moving smoothly without the aid of expensive electric heating elements.

Rule 4: Calibrate the Tank Volume to Match Herd Drinking Velocity

Standing water freezes exponentially faster than moving water. A massive hundred-gallon tank used for a tiny herd of ten cows during winter will freeze over continuously because the water sits stagnant for hours. Size your winter watering troughs down to the minimum volume required to handle the drinking velocity of your specific herd size. A smaller, well-insulated tank that refills rapidly every time a cow drinks ensures a constant influx of fresh, fifty-degree water from deep underground. This continuous kinetic and thermal exchange prevents ice crystals from forming on the surface, keeping the station open without electricity.

Rule 5: Enforce Wind and Mud Deflection Perimeters

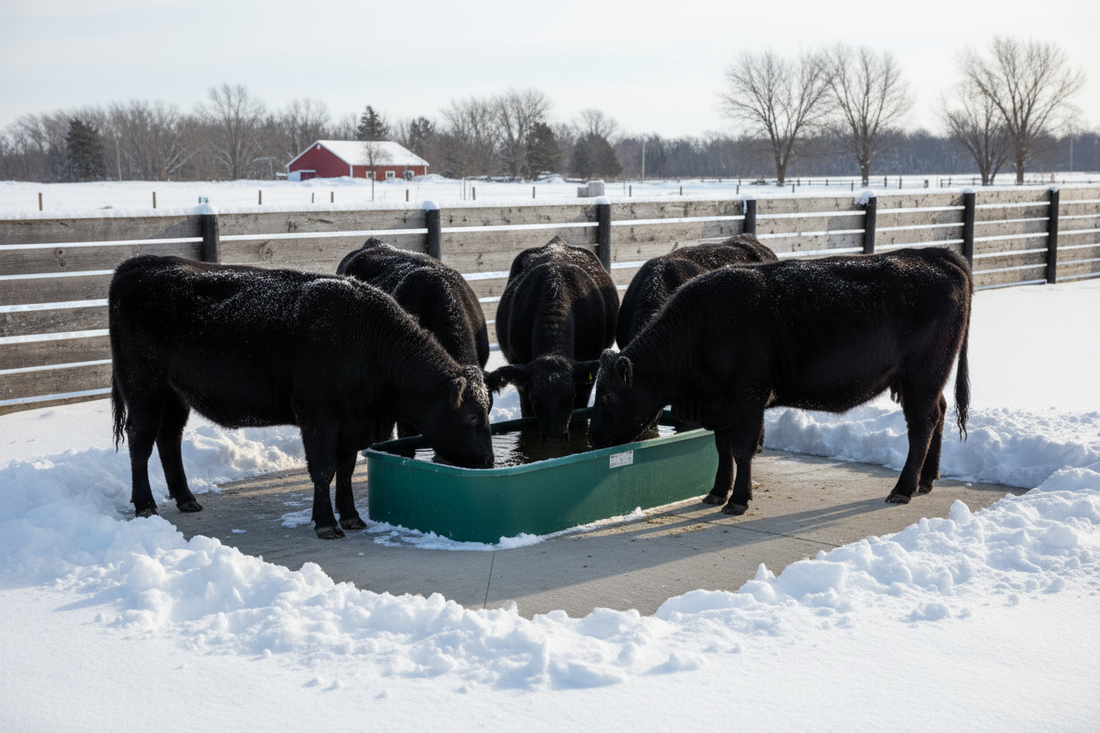

Freezing winter winds sweeping across an open pasture accelerate thermal loss from the water surface through evaporation. Position your winter watering pad behind a natural windbreak, a heavy timber fence line, or a dedicated steel wind deflector panel. Additionally, ensure the concrete pad slopes gently away from the trough at a two-percent grade. Cattle gathering around the water station will churn up wet snow and manure, creating an icy, hazardous mud bog if drainage is poor. A clean, sloped, gravel-reinforced perimeter prevents slipping injuries and keeps cows gathering comfortably even during heavy blizzards.
